Item
| Ref. | Description | |
| 1 |  | 57Y02 | Back cap Long |
| 57Y03 | Back cap Medium |
| 57Y04 | Back cap Short |
2
|  | 10N21 | Collet O 0.5mmx020" |
| 10N22 | Collet O 1.0 mmx040" |
| 10N23 | Collet O 1.6mmx1/16" |
| 10N24M | Collet CD 2.0mmx5/6411 |
| 10N24 | Collet O 2.4mmx3/3211 |
| 10N25 | Collet 0 3.2mmx1/8" |
| 54N20 | Collet O 4.0mmx5/32" |
| 2.1 |  | 10N23 | Collet O 1.6mmx1/16" |
| 10N24 | Collet 0 2.4mmx3/3211 |
| 10N25 | Collet 0 3.2mmx1/8" |
| 3 |  | 10N21S | Collet StubbyO 0.5 mmx020" |
| 10N22S | Collet StubbyO 1.0 mmx040" |
| 10N23S | Collet StubbyO 1.6mmx1/16" |
| 10N24MS | Collet StubbyO 2.0 mmx5/6411 |
| 10N24S | Collet StubbyO 2.4 mmx3/3211 |
| 10N25S | Collet StubbyO 3.2 mmx1/8" |
| 4 |  | 18CG | Cup gasket |
| 5 |  | 54N01 | Gas lens cup insulator |
| 6 |  | 54N63 | Jumbo cup insulator |
| 7 |  | 18CG20 | Stubby cup insulator |
8
|  | 10N29 | Collet bodyO 0.5 mmx020" |
| 10N30 | Collet bodyO 1.0 mmx040" |
| 10N31 | Collet bodyO 1.6mmx1/16" |
| 10N31M | Collet bodyO 2.0 mmx5/64" |
| 10N32 | Collet bodyO 2.4 mmx3/32" |
| 10N28 | Collet bodyO 3.2 mmx1/8" |
| 406488 | Collet bodyO 4.0 mmx5/3211 |
9
|  | 45V29 | Collet body gas lens O 0.5 mm./.020" |
| 45V24 | Collet body gas lensO 1.0 mm./.040" |
| 45V25 | Collet body gas lens O 1.6mm./.1/16" |
| 45V25M | Collet body gas lens O 2.0 mm./.5/64" |
| 45V26 | Collet body gas lens O 2.4 mm./.3/32" |
| 45V27 | Collet body gas lensO 3.2 mm./.1/8" |
| 45V28 | Collet body gas lens O 4.0 mm./.5/32" |
10
|  | 45V0204 | Collet body Jumbo O 1.0 mm./.040" |
| 45V116 | Collet body Jumbo O 1.6mm./.1/16" |
| 45V64 | Collet body Jumbo O 2.4 mm./.3/32" |
| 995795 | Collet body Jumbo O 3.2 mm./.1/8" |
| 45V63 | Collet body JumboO 4.0 mm./.5/32" |
| 11 |  | 17CB20 | Collet Body Stubby |
| 12 |  | 10N50 | Alumina nozzlel.D.6.5 mmx1/4"-size 4 |
| 10N49 | Alumina nozzlel.D.8.0 mmx5/16"-size 5 |
| 10N48 | Alumina nozzlel.D.9.5 mmx3/8"-size 6 |
| 10N47 | Alumina nozzlel.D.11.0 mmx7/16"-size 7 |
| 10N46 | Alumina nozzlel.D.12.5 mmx1/2"-size 8 |
13
|  | 10N45 | Alumina nozzlel.D.16.0 mmx5/8"-size 10 |
| 10N44 | Alumina nozzle LD.19.5 mm.3/4"-size 12 |
14
|  | 10N50L | Alumina nozzle LD.6.5 mm.1/4"-size 4 |
| 10N49L | Alumina nozzle LD.8.0 mm.5/1 6"-size 5 |
| 10N48L | Alumina nozzle LD.9.5 mm.3/8"-size 6 |
| 10N47L | Alumina nozzle LD.11.0 mm.7/1 6"-size 7 |
| 10N46L | Alumina nozzle LD.12.5 mm.1/2"-size 8 |
15
|  | 54N18 | Alumina nozzle gas lens LD.6.5 mm.1/4"-size 4 |
| 54N17 | Alumina nozzle gas lens LD.8.0 mm.5/1 6"-size 5 |
| 54N16 | Alumina nozzle gas lens LD.9.5 mm.3/8"-size 6 |
| 54N15 | Alumina nozzle gas lens LD.11.0 mm.7/16"-size7 |
| 54N14 | Alumina nozzle gas lens LD.12.5 mm.1/2"-size 8 |
| 54N19 | Alumina nozzle gas lens LD.19.5 mm.3/4"-size 12 |
16
|  | 54N17L | Alumina nozzle gas lens I.D.8.0mm.5/16"-size 5 |
| 54N16L | Alumina nozzle gas lens LD.9.5 mm.3/8"-size6 |
| 54N15L | Alumina nozzle gas lens LD.11.5 mm.7/16"-size 7 |
| 54N14L | Alumina nozzle gas lens I.D.12.5mm.1/2"-size 8 |
17
|  | 57N75 | Alumina nozzle gas lens LD.9.5 mm./3/8"-size 6 |
| 57N74 | Alumina nozzle gas lens LD.12.5 mm./1/2"-size8 |
| 53N88 | Alumina nozzle gas lens I.D.16.0 mm./5/8"-size 10 |
| 53N87 | Alumina nozzle gas lens I.D.19.5 mm.3/4"-size 12 |
| 18 |  | 53N89 | Alumina nozzle JumboLD.24.0 mm/1.0 -size 15 |
19
|  | 13N08 | Alumina nozzle LD.6.5 mm.1/4"-size 4 |
| 13N09 | Alumina nozzle LD.8.0 mm.5/1 6"-size 5 |
| 13N10 | Alumina nozzle LD.9.5 mm.3/8"-size 6 |
| 13N11 | Alumina nozzle LD.11.0 mm.7/1 6"-size 7 |
| 13N12 | Alumina nozzle I.D.12.5 mm.1/2"-size 8 |
| 13N13 | Alumina nozzle I.D.16.0 mm.5/8"-size 10 |
20
|  |

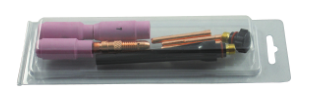

| Consumable kit |
| Consumable kit withOI .6WC orO2.4WC |
| 21 |  |
| Consumable purse kit |
| 22 |  |
| Consumable purse kit withOI .6WC orO2.4WC |
